Height gages
Height Gages for Every Type of Shop, Application, and Budget
Whether you are on a tight budget and need a shop-grade height gage, or if you're looking for advanced 2D measurement with lab-grade accuracy, our comprehensive line of height gages has options to fit your inspection needs and budget.
Customers report that the ease-of-use, intuitive touchpad displays, and ability to customize our height gages with accessories brings them back to by multiple units.
Choose from our two broader categories of height gages...
Need a little more detail to learn what might be the best fit for your application?
Entry-Level Shop Height Gages
If your shop doesn't have a height gage yet, an entry-level model is one of the most affordable and impactful upgrades you can make. Accurate vertical measurements, consistent scribing, and reliable inspection work all become faster and easier with the right tool on your surface plate.
Single Beam
- One vertical column, simpler construction
- Cost effective and easy to maintain
- Ideal for everyday layout and inspection work

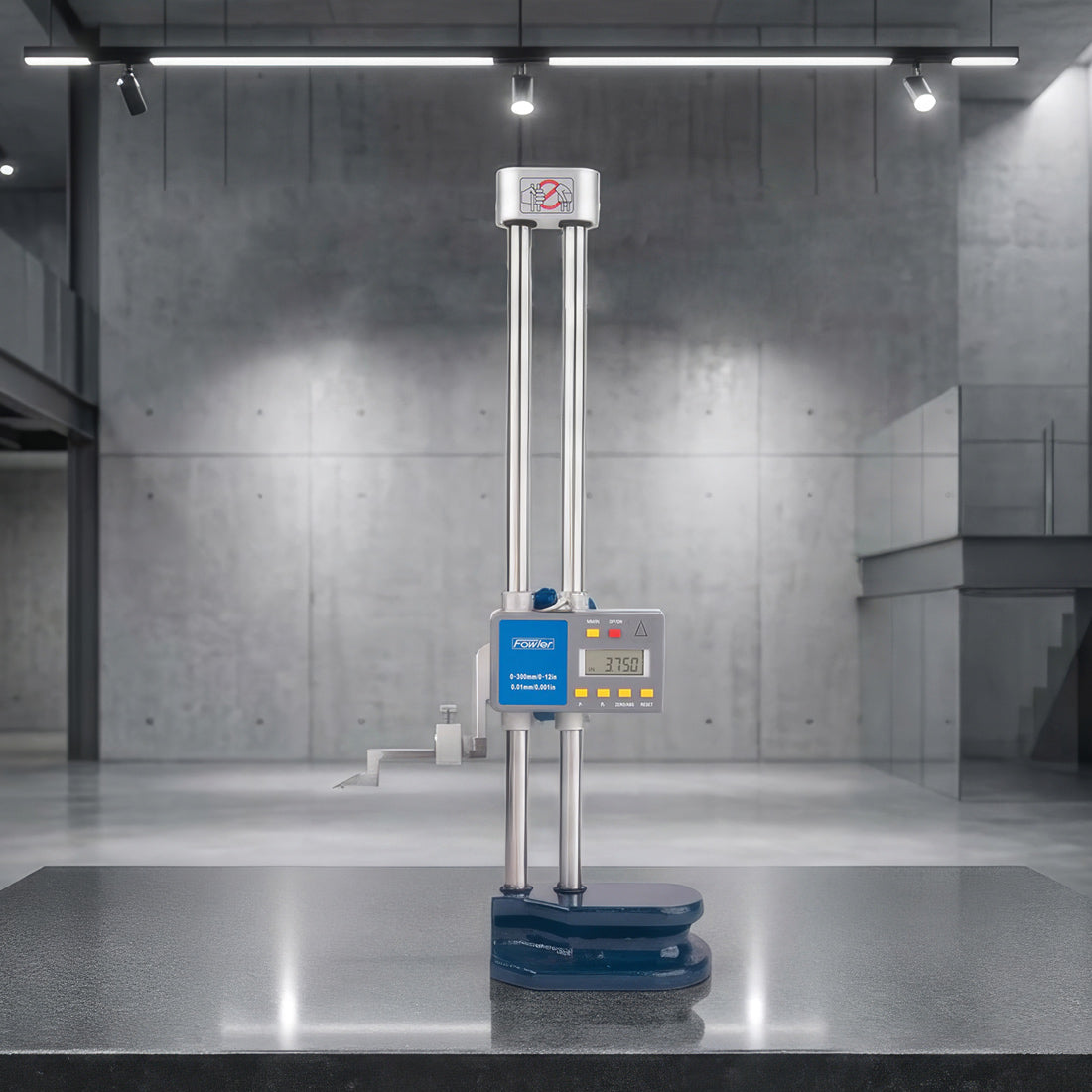

Dual Beam
- Two parallel columns for added rigidity
- Keeps the slider squarer to the base
- Smoother travel and more consistent readings
- Better suited for taller parts and tighter tolerances

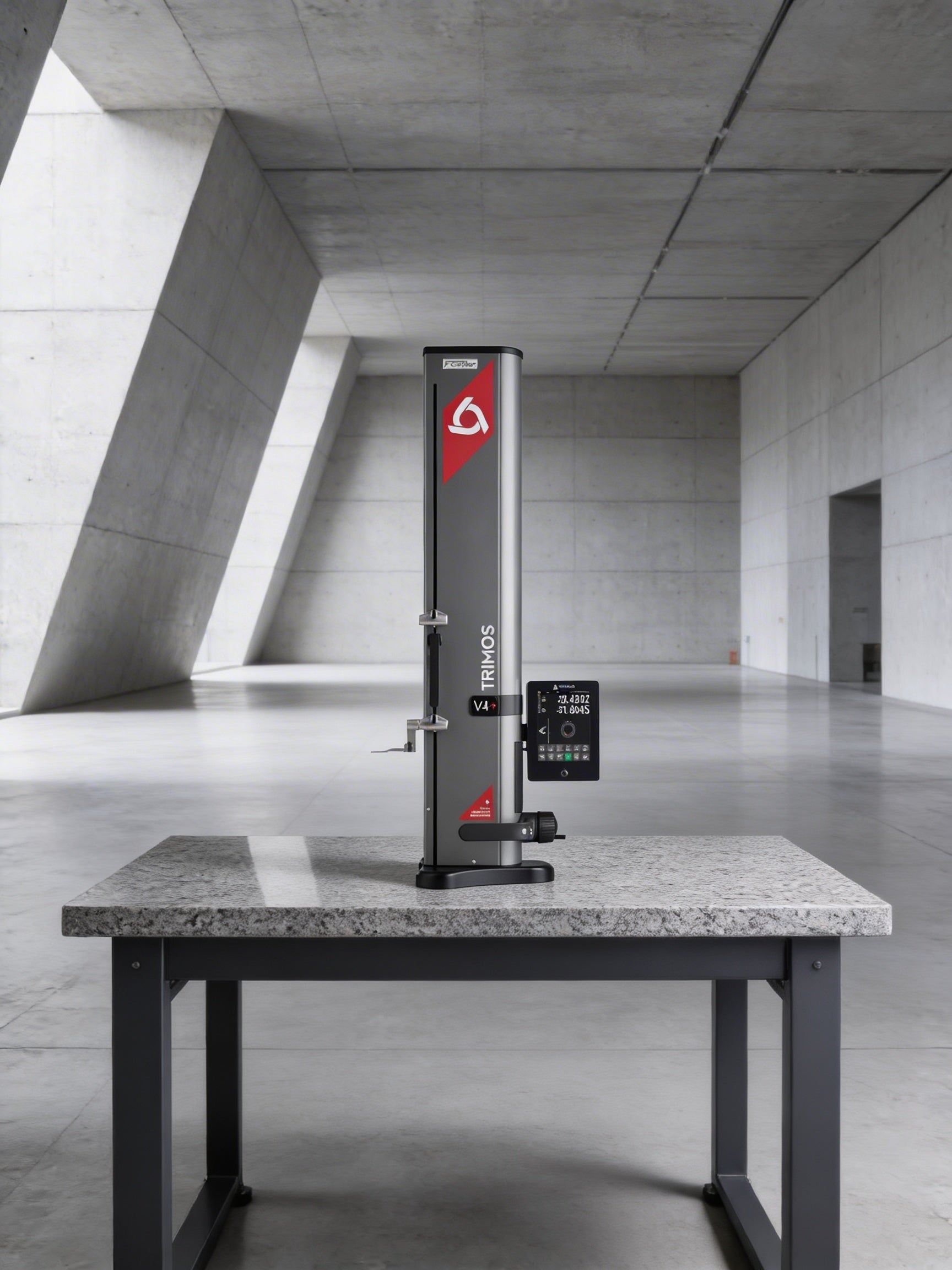

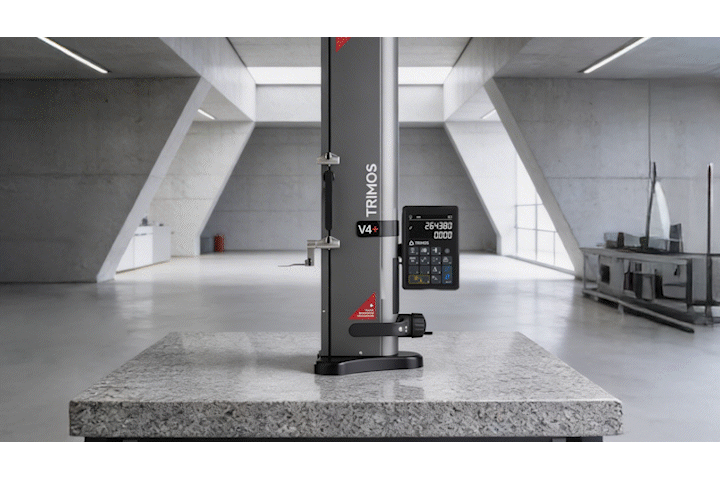

Advanced Measurement System Height Gages

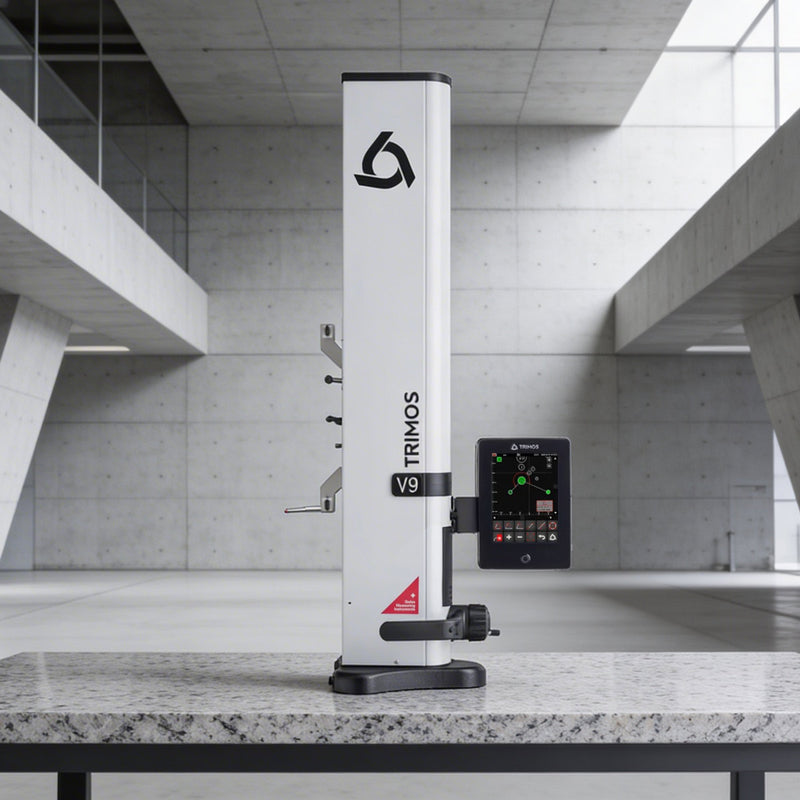

Complete measurement stations for demanding inspection environments, spanning the V3, V4, V4+, V6, V7, V8, and V9.
- Motorized carriage movement with constant measuring force
- Precise linear scales for exceptional repeatability
- 2D measurement capability for centerlines, feature distances, and geometric relationships
- Dual carriage system (V4 through V9) extends probe range an additional 12"/300mm per model
- Touchscreen interfaces with programmable measurement routines
- Wide range of probe accessories for maximum versatility
For shops that need the highest level of accuracy and flexibility, the Trimos V series bridges the gap between traditional height gages and a full CMM.
